2.Products:container semi-trailer, van semi-trailer,flat bed trailer, low bed semi-trailer, tank semi-trailer, refrigerated semi-trailer, container skeleton semi-trailer, chemical liquid tank semi-trailer,etc;
3.Equipment: 13/15/16 tons axle with famous brand of Fuhua and BPW, double 28tons landing legs, 7.5/8.0 steel rim, steel wire tyres and other kinds of tyres with different brands, 50#/90# traction pin, ABS anti-lock braking system, with spare wheel carrier and tool kit.
Chassis standard configuration
Semi-trailerstructure for the spaceframe type, by twoH-shaped and beam welding together, security, stability, and strong bearing capacity, balanced steel plate spring suspension system, the front frame configuration drawing boards and 90 drawing pin, steam path and circuit according to the standard installation works in the factory.13 tons of Fuhua bridge,12 12.00R22.5 vacuum tire, a kit and a water tank, two spare tire carrier, 13 tons of brake pads, 28 tons single leg, with Comet ABS system.

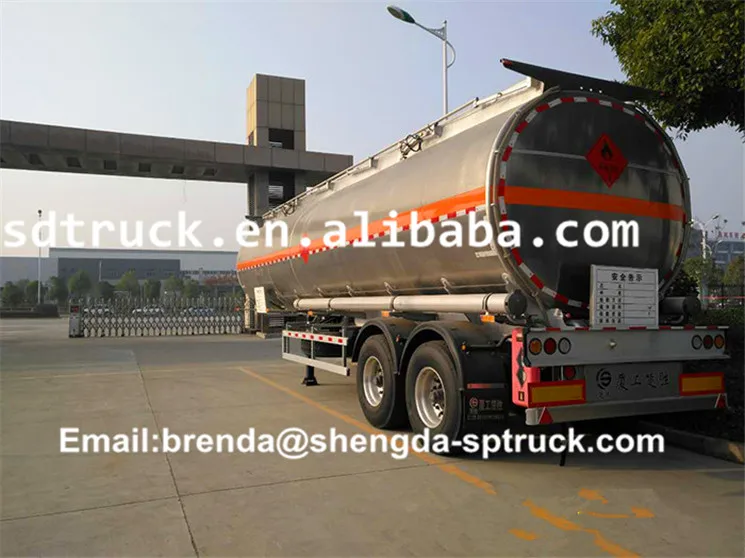

Aluminum alloy tank material, appearance for straight cylinder square round jar, 6 mm cylinder thick, 7 mm thick head, partition 5 mm, two European standard jar, a bottom valve, 4 sets of guardrail, semitrailer have DN80 Gravity flow valve with boxon both side, a single warehouse without pump.Paint: aluminum silver grey, flammable liquid paste, reflective signs, safety notices.
The total mass(kg):30300
Rated load (kg): 25400
Curb Weight(kg): 4900
Front/Over hang: -/1500
Dimensions (mm) : 10100*2500*3900
Number of axes: 2
Approach / departureAngle(°): -/18
No. of Spring: -/-/-
Number of tires: 8
Tire Specifications: 11.00R20 14PR,12R22.5 14PR
Rear track (mm) : 1840/1840
The optional configuration
You could add pump3000RMB, 15 tons Fuhua bridge each price 1000RMB, 16 tons Fuhua bridge each price 2000 RMB, 13 tons BPW axle every price 3000 RMB, 14 tons BPW axle every price 3000 yuan,16 tons add price 1000.The tank can be divided into Multiple warehouse. Capable of fitting a bottom valve, oil and gas recovery and prevent the overflow mouth, bottoms oil etc of European standard.
THE RELEVANT CERTIFICATES
Q. Can I have samples of this type of trailer to test the quality?
A.Yes, you can buy any samples to test the quality,our MOQ is 1 set.
Q. What's the delivery time and can you lower the price?
A. It depends on your order. The delivery time is within 15 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lowered.
Q. Can I customize the painting and the trailer design?
A. Yes, we offer customized design and logo for reasonable type.
Q. What's the payment method?
A.TT 30% as Deposit, Balance Before shipment by TT at sight.
