FOTON 12M/14M/16M Aerial Work Platform Truck convenient operation

FOB Reference Price:Get Latest Price
US $24,800-29,200 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Transmission Type:
Manual
Condition:
New
Emission Standard:
Euro 3
Fuel Type:
Diesel
Dimensions (L x W x H) (mm):
5990x2100x2395
Place of Origin:
Hubei, China (Mainland)
Brand Name:
CSC
Model Number:
CSC5060JK
Chassis brand:
DongFeng.FAW.Foton.Sino.JAC.IVECO.Shacman
Color:
Customized
Max working height:
12M/14M/16M
The total mass(kg):
4085
Curb Weight(kg):
2475
Front Overhang / Rear Overhang (mm):
1170/1530
Tire Specifications:
750-16
Wheelbase(mm):
3100
Number of tires:
6+1
Chassis Model:
BJ3042
SupplyAbility
SupplyAbility:
1000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Nude/ Ro-ro ship / Bulk transport / Container packing / SKD / etc. and it can be offered according to your request.
Port
any port in China
Lead Time :
15-25 days

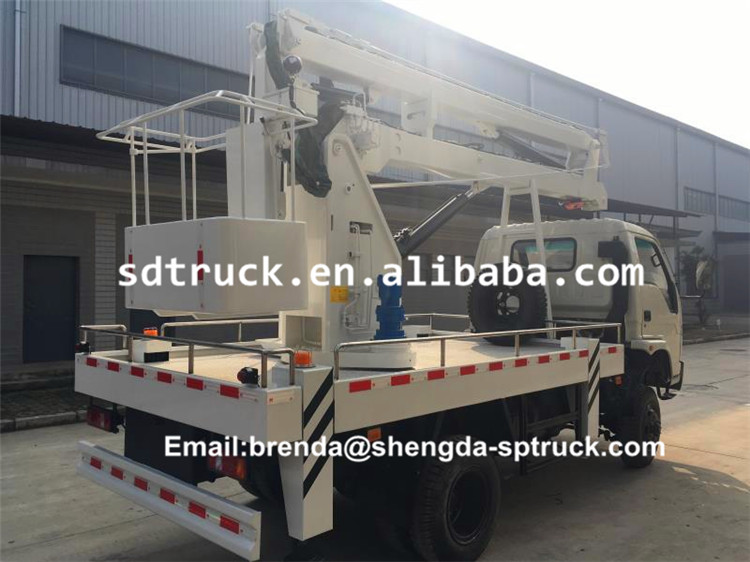

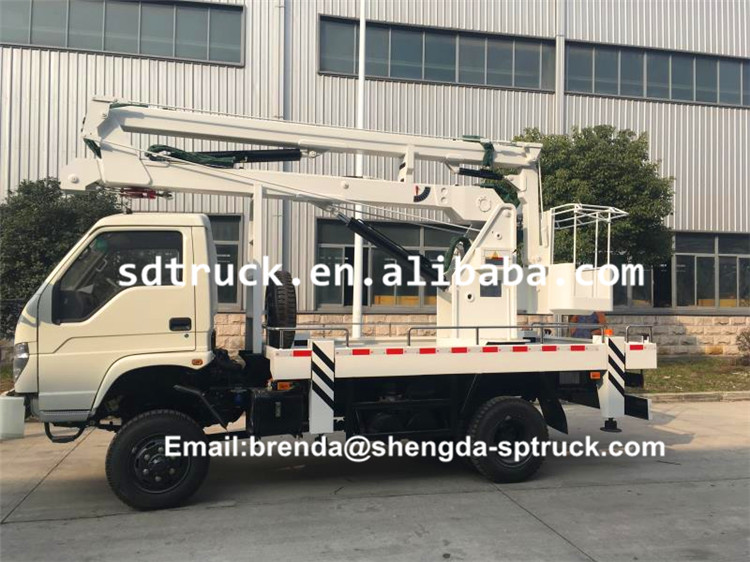

FOTON 12M/14M/16M Aerial Work Platform Truck convenient operation



APPLICATION

12M Aerial Platform truck with Rotary Platform which mounted based on a FOTON chassis,floding arm booms could reach 12 meters height of air operations and works, widely used in street maintenance,landscaping works,television video,communications engineering,airport,decoration,aerial advertising and other areas of need.









Technical Parameters



 The total mass(kg)

4085

 Curb Weight(kg)

2475



 Rated the quality of(kg)

1480

 Chassis Model

BJ3042



Approach / departure

Angle(°)

23/17

 Front Overhang / Rear Overhang (mm)

1170/1530



 Dimensions(mm)

5990x2100x2395

 Compartment Dimension(mm)

xx



 Number of axes

2

 Maximum speed(km/h)

80



 Tire Specifications

7.50-16

 Number of tires

6



 Front track(mm)

1636

 Rear track(mm)

1586



 Wheelbase(mm)

3100

 No. of Spring

9/8+6



 Emission Standard

Euro III

 Type of fuel

Diesel



Engine Parameter



 Engine Model

YN4100QB

 Engine Manufacturer

Kunming Yunnei Engine Co., Ltd



 Engine Displacement (ml)

3760

 Engine power(kw)

66



 Chassis Description



1. Foton 4x4 chassis,single row flat cab, right hand drive with AC;

2. Yunnei 4 cylinder 90HP diesel engine,

3. 5 transmission gear box;

4. Power steering, automatically air-cut brake, 7.5-16 tire.



Modified Description

1. Maximum operation height:12m/14m/16m

2. Equipped with tubular bucket(limit load of 200kg);

3. ±360° hydraulic rotation; three folding arm; 4 hydraulic cylinder can adjust leg hydraulic lock in two-way (Leg for manual operation can be controlled separately);

4. Arm lifting, rotating, landing, hook are using electromagnetic directional valve system with electric control operation ( one set operation switch in basket, one set in ground level)

5. Equipped with emergency power unit.





 Packaging&shipping:



1,packaging details:bulk,naked,Ro-Ro Container and also can package as you need



2,delivery details:20 working days after official order





What we can do for customers?



1. the satisfied product with high level standard



2. the full aspect service from order to shipping



3. help customer to get the related spare parts of trailer or tractors if customer needs



4.We have engineer on line to guide you how to operate the trucks and daily maintenance



we are waiting for you to get this ideal products and best quotation





Company Profile



Was established in 2002,located in sui zhou city, which the most famous auto city. We are a professional Special purpose vehicle manufacturing enterprises with the ability of R&D ,has devoted integrate product development, manufacturing , product sales,and after-sales service together, creating our own brand .We run the main products include :tanker truck series, sprinkler series ,chemical liquid transport truck, garbage truck series, concrete mixer vehicle, fecal suction truck, sewage truck, dump truck and so on .

Our products  have passed ISO9001certification and China Compulsory Certification. company is always following ”people oriented, be honest to customer” as the enterprise ideology and we insist to stressed on quality and improvement. old and new friends are warmly welcome to have a visit in our company and we are willing to improve together and create a bright future.



The Relevant Certificates



FAQ:
