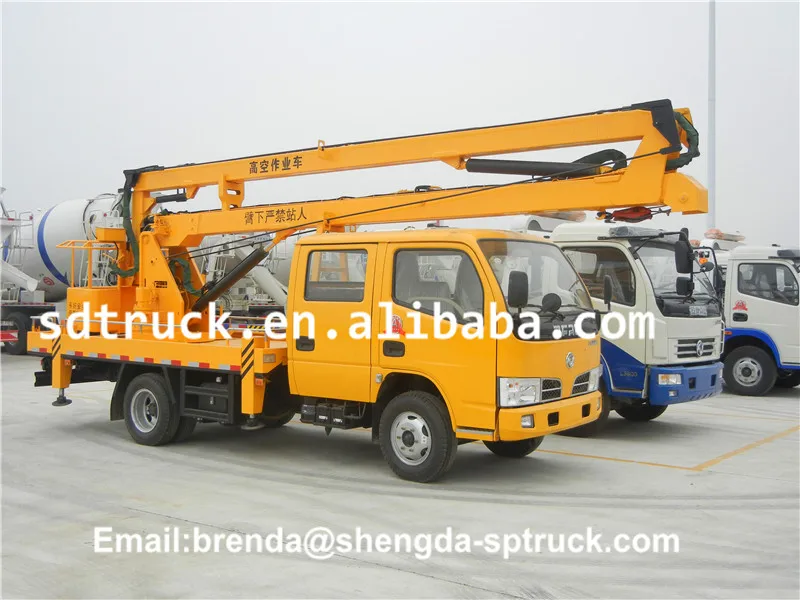

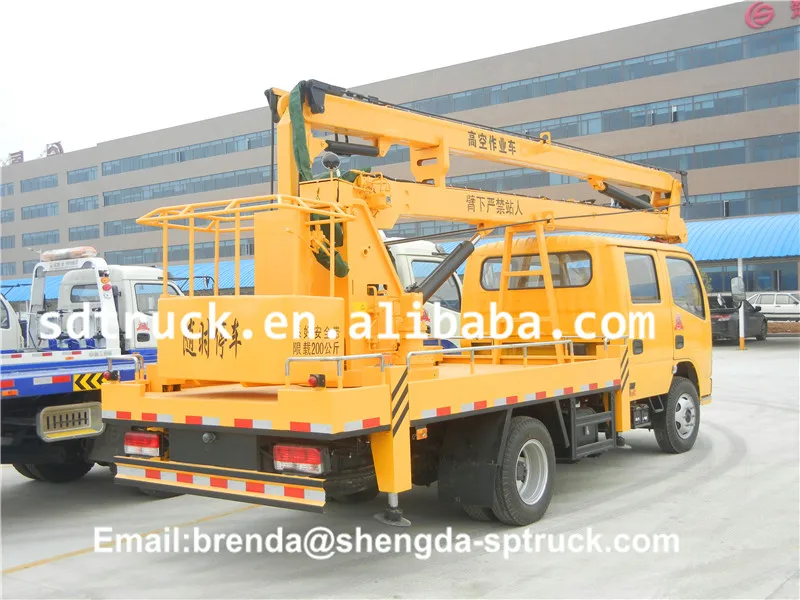

Dongfeng 18M high-altitude working vehicle best buys

FOB Reference Price:Get Latest Price
US $25,000-29,900 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Transmission Type:
Manual
Condition:
New
Emission Standard:
Euro 3
Fuel Type:
Diesel
Dimensions (L x W x H) (mm):
8460*2280*3420
Place of Origin:
Hubei, China (Mainland)
Brand Name:
CSC
Model Number:
CSC5082JGK
Chassis brand:
DongFeng.FAW.Foton.Sino.JAC.IVECO.Shacman
Max working height:
18m
Color:
Customized
Wheelbase(mm):
3800
Gross Weight(kg):
7645
Curb Weight(kg):
7450
Tire specification:
750R16; 750-16
Tire No.:
6+1
pproach / departureAngle(°):
20/10
No. of axes:
2
SupplyAbility
SupplyAbility:
1000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Nude/ Ro-ro ship / Bulk transport / Container packing / SKD / etc. and it can be offered according to your request of Hot and Famous 18m aerial bucket truck,aerial platform truck,aerial work platform truck.
Port
any port in China as your request
Lead Time :
15-25 days

Dongfeng 18M high-altitude working vehicle best buys




We are one professional truck manufacturer in China,we can provide our customers various configurations trucks with different prices acording to your needs.
1.At present Our Truck with Euro 2 and Euro 3 Emission Standard;Drive model:4*2; Brand with Dongfeng, JMC, JAC, Foton, etc;
2.Cab: Double-Row( rated passagers:6),One&Half-Row(rated passagers:3), Steering control:Left Hand Dive/Right Hand Drive;
3.Working height:10m,12m,14m,16m,18m,20m,22m,24m;
4.Hydraulic lifting system: 360°rotation; Arms number:two, three, four or five arms;equip with H-mode hydraulic legs;
5.The hydraulic operation system is set in the upper and lower end of the truck, equip with working platform & lifting hook.
6.Romote control system is optional, that could control the truck engine start/stop, to save energy when the truck fixed-point working.



Dongfeng 18M high-altitude working vehicle best buys

1. We are the manufacturer.
2. OEM is OK.
3. ISO certificate.




Packaging Details: Nude/ Ro-ro ship / Bulk transport / Container packing / SKD / etc. and it can be offered according to your request.
Delivery Detail: 10 to 25 days after receiving your deposit (T/T, L/C)





Technical parameters of Dongfeng 18M high-altitude working vehicle best buys
The totalmass(kg)7645Curb Weight(kg)



7450
Rated the quality
of(kg)



××

Chassis Model

EQ1080S8DC

Approach /
departure angle(°)
20/10Front overhang /
rear overhang

1130/2350

Dimensions(mm)

8460×2280×3420

Compartment
dimension(mm)

××

Number of axes2Maximum speed90
Tire
Specifications

7.50R16;  7.50-16

Number of tires6+1
Front track1740Rear track1610,1586
Wheelbase(mm)3800Axle load

2810/4835

Number of spring

8/10+7

Type of fuelDiesel
Emission
Standards
Euro III/EuroIV
Engine parameters
Engine Model

CY4SK2

Engine ManufacturerDongfeng chaoyang chaochai  power co., LTD
Engine
Displacement
3352 mlEngine power88 kw
Chassis
Description
1. Dongfeng 4x2 chassis, flat double row cab, left/right hand drive/AC;
2. Dongfeng Chaochai 4 cylinder 120HP diesel engine, 5 speed gear box, 7.00-16 tire;
3. Power steeling, automatically air-cut brake.
Modified
Description
1. Operational height:10-26m,rated load of cage:200-250kg,four H-type hydraulic telescopic legs..
2. 360°all rotation.
3. Two sets of operating system,operating mode:electronic control,cage operating and platform operating.
ComponentBasic composition:chassis,PTO,gear pump,chassis parts,folding arms/telescopic arms, oil cylinder,pipeline system,working cage, rotating mechanism,hydraulic system,electrical system.
PurposeConvenient moving,used in narrow roads and streets.Aerial work platform can be used in aloft working of electricity,street lamp,municipal administration,gardens,transportation and so on.
Product advantagereasonable price,multiple functions,easy operation
